單機設備
Stand alone equipment
設備描述
This machine is mainly used for peach, apricot, cherry and other stone fruit at room temperature.  It is one of the key equipments in the juicing and pulp production line of stone fruit.
working principle
By rotating the tooth roller and rubber roller to remove the peach, apricot fruit in the core, get the lump flesh.  The spacing between the two rolls depends on the fruit.  The fruit is fed into the hopper by the front equipment, and the fruit is pressed into the two rollers by the crank-connecting rod mechanism and the fruit pressing plate.  The two rollers rotate against each other, most of the fruit pulp is pressed into the gap of the tooth roller, the fruit core is squeezed in the elastic rubber roller, the comb plate to dig out the pulp from the gap of the tooth plate.  The kernel with pulp enters the washing part to separate the meat kernel.
technical specification

Technical parameters

Product name Fruit cold core removing machine

Device model JPCR-100

Main material: 304 stainless steel (or customized according to customer requirements)

The processing capacity ranges from 0.5 t/h to 10 t/h

Dimensions 750*500*800 to 1100*800*1600 (unit: mm)

The equipment is suitable for enucleating stone fruit at room temperature

Suitable for peaches, apricots, dates, nuts, walnuts and other stone fruits

設備特點
To nuclear machine, simple and convenient operation, don't have to watch for a long time, a person can manage multiple machines at the same time, the transmission system adopts advanced design concept and standard parts, punching machine tool technology is adopted to improve the stamping nuclear nuclear principle, make each device conform to the design of a high standard, high precision, thus to nuclear rate can reach 100%, and the fruit shape completely the same
The structure of the nuclear machine is composed of 304 stainless steel thick wall square pipe and channel steel welding, so that the equipment is more stable in the start and operation, the parts are all assembled by bolt fastening, so that the equipment is more convenient and fast in operation and maintenance
The continuous work completely solves the difficulties of low efficiency, labor and time - consuming of manual nuclear removal

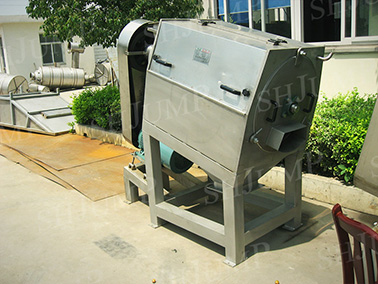

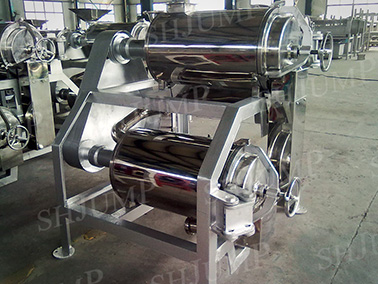

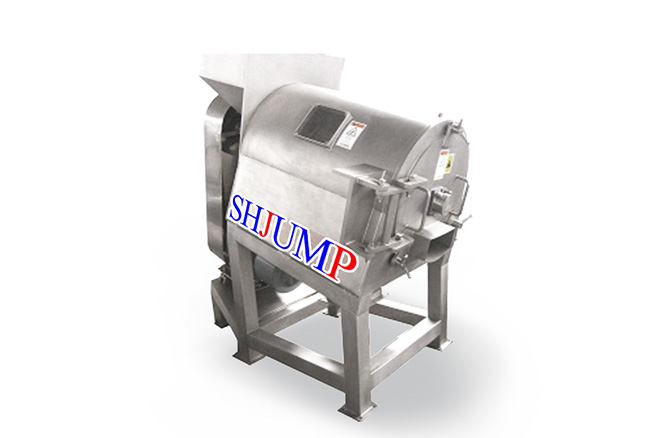

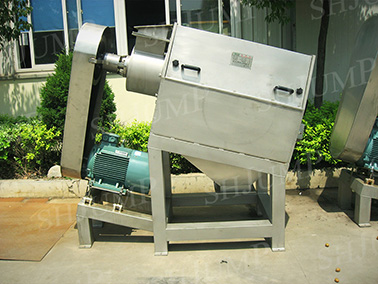

成品展示
